10-30Kg dryer

  • 10-30Kg dryer
  • 50-150Kg dryer
  • 120Kg New Energy Saving Drying Machine
  • 120Kg New Quick Drying Machine
  • 180 kg Hong Kong style dryer

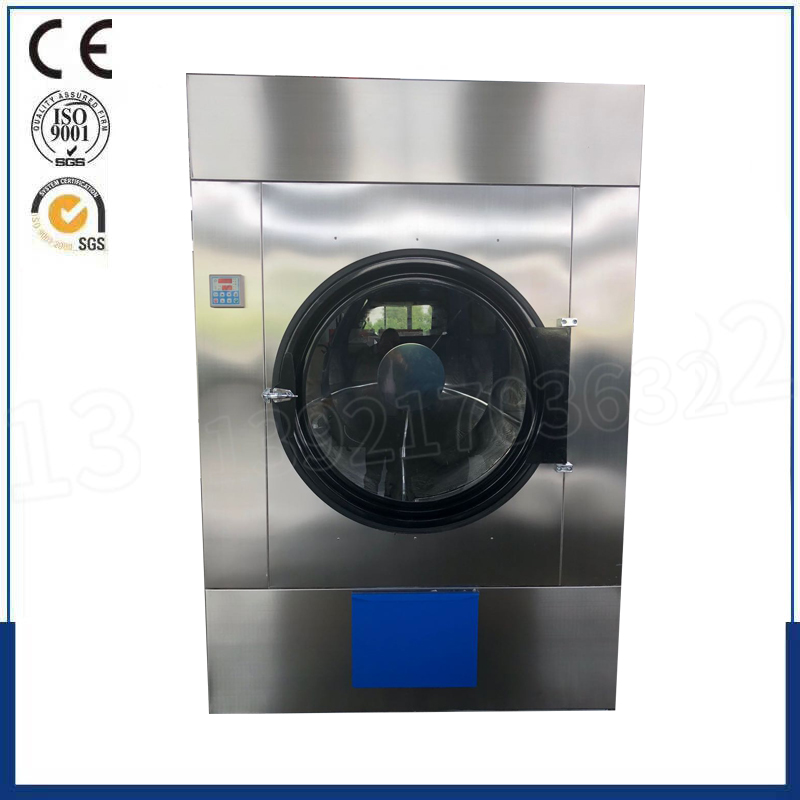

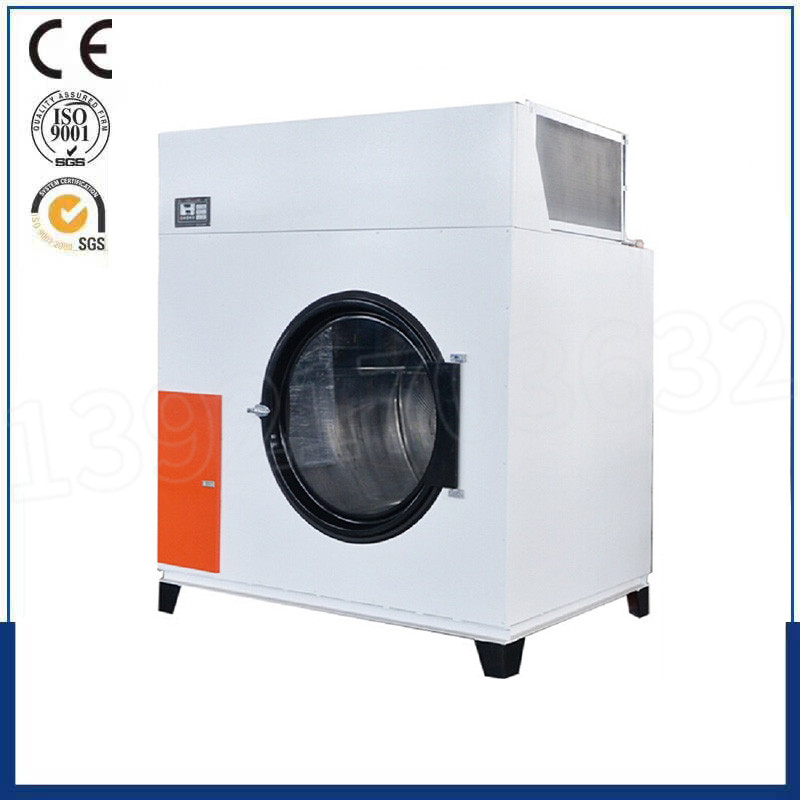

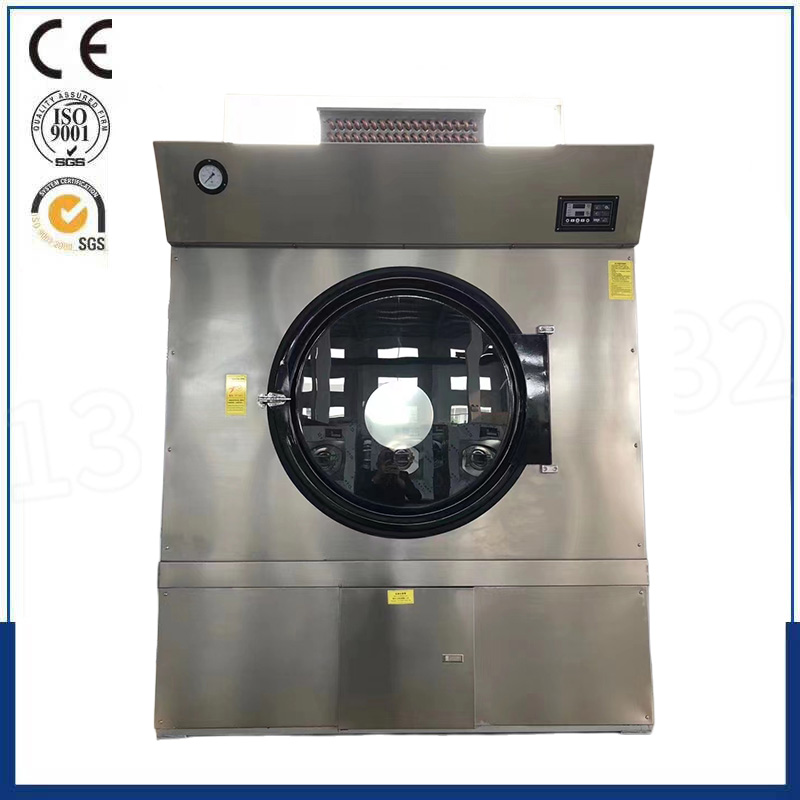

1: Main structural characteristics of industrial drying machines

1: Industrial drying machines have high efficiency and fast heating up; Reasonable structure and low noise; Easy to operate. There are two options available: steam heating and electric heating

2: The electric heating tube of the industrial dryer is made of all stainless steel, with fast heating and high heating efficiency.

3: The inner liner of the industrial dryer is made of stainless steel plate.

4: The industrial dryer has a computer controller, with stable performance and accurate temperature control.

5: Industrial dryers are specialized in clothing factories, washing factories, hotels, hospitals, industrial and mining enterprises, etc.


二、(Main Technical specifications)


Type

overall dimensions (mm)

(mm)    drum Size

(kw)    power


Motor power exhaust fan(KW)

 electric heating power (kw)

(r/min)

MPa steam pressure     (MPa)

note

SWA801-10

700*1100*1340

φ640*560

0.55

0.55

7.2

46

0.4-0.6

Electric
steam type

SWA801-15

900*1200*1500

φ760*560

0.75

0.75

10.8

35

0.4-0.6

SWA801-30

1100*1450*1900

φ950*860

1.1

1.1

18

32

0.4-0.6

SWA801-50

1320*1700*2200

φ1160*1000

1.5

1.5

21

32

0.4-0.6

SWA801-100

1500*1800*2390

φ1320*1100

2.2

2.2

39

30

0.4-0.6

SWA801-100(雙)

1620*1800*2410

φ1500*1000

2.2

2*1.5

-

30

0.4-0.6

Double blower

SWA801-120

1620*1850*2410

φ1500*1080

2.2

2*1.5

-

28

0.4-0.6

SWA801-120(新)

1650*1900*2470

φ1470*1180

2.2

2*2.2

-

26

0.4-0.6

Double blower

SWA801-120(臺)

2100*1900*2380

φ1470*1180

2.2

2*2.2

-

26

0.4-0.6

SWA801-150

1740*1900*2550

φ1600*1160

3

2*2.2

-

27

0.4-0.6

SWA801-180(港)

1900*1850*2650

φ1800*1100

4

2*2.2

-

24

0.4-0.6

SWA801-30T

1100*1450*1900

φ950*800

1.1

1.1

-

32

-

Gas type with four combustion heads

SWA801-50T

1320*1700*2200

φ1160*1000

1.5

1.5

-

32

-

SWA801-100T

1485*1800*2360

φ1320*1100

2.2

2.2

-

30

-

Gas type with four combustion heads

SWA801-120T

1620*1850*2400

φ1500*1080

2.2

2.2

-

28

-

SWA801-150T

1740*1900*2600

φ1600*1160

3

2.2

-

27

-


3、 Product Introduction

This dryer is automatically controlled by a computer and can be configured with different drying temperatures and times according to the drying requirements, achieving drying automation. The inner cylinder of this dryer is made of stainless steel bright plate with excellent heat resistance, and the inner wall is smooth, reducing clothing wear and tear. This dryer has an efficient radiator and is equipped with a reasonable air duct, allowing the hot air to come into direct contact with the clothes, greatly improving the drying efficiency and saving energy. The dryer has a large diameter feeding port, which facilitates the entry and exit of clothes. A large area of plush collection net is not easy to cause plush blockage, protecting the smoothness of the air duct, thereby greatly improving the drying efficiency. This dryer is available in various models for external steam heating, electric heating, and natural gas heating.
